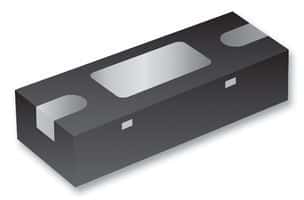

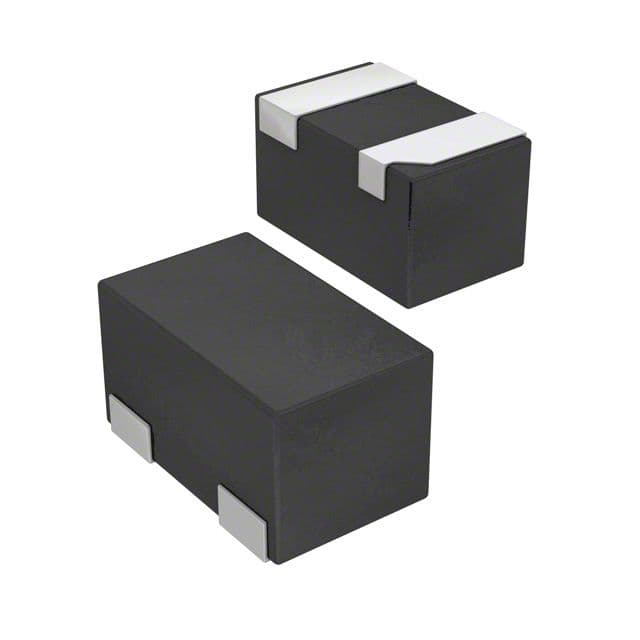

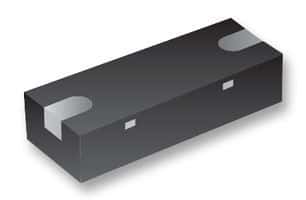

Bidirectional Transient Voltage Suppressor (TVS) diode, 47W peak pulse power, 24V reverse standoff voltage. Features 10pF capacitance, 47V clamping voltage, and 1A peak pulse current. Operates across a -40°C to 125°C temperature range. Packaged in a DFN surface-mount case with gold contact plating. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns CDDFN2-T24C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns CDDFN2-T24C technical specifications.
| Capacitance | 10pF |
| Package/Case | DFN |
| Clamping Voltage | 47V |
| Contact Plating | Gold |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Max Breakdown Voltage | 25V |
| Min Breakdown Voltage | 25V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 47W |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Peak Pulse Power | 47W |
| Polarity | Bidirectional |
| Power Dissipation | 47W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 24V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 24V |
| RoHS | Compliant |
