Unidirectional Transient Voltage Suppressor (TVS) diode designed for ESD protection. Features a 3.3V working voltage and 4V minimum breakdown voltage, clamping at 10.9V. Offers 500W peak pulse power and 43A peak pulse current handling. Housed in a compact SOD-323-2 surface mount package with tin plating, operating from -55°C to 150°C.
PackageSOD-323-2
Capacitance500pF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CDSOD323-T03S technical specifications.
General
| Capacitance | 500pF |
| Package/Case | SOD-323-2 |
| Clamping Voltage | 10.9V |
| Contact Plating | Tin |
| Depth | 1.45mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Leakage Current | 125uA |
| Length | 1.9mm |
| Min Breakdown Voltage | 4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500W |
| Max Surge Current | 43A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 43A |
| Peak Pulse Power | 500W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 3.3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CDSOD323-T03S Datasheet
Download the complete datasheet for Bourns CDSOD323-T03S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

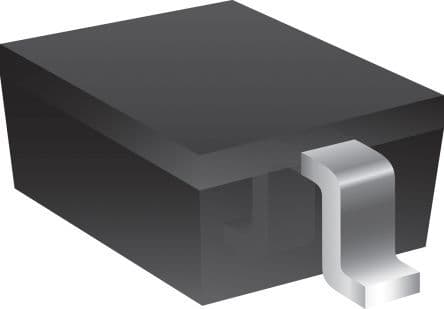

Product Images
