Unidirectional transient voltage suppressor diode with 500W peak pulse power and 5V reverse standoff voltage. Features a 13.5V clamping voltage and 6V minimum breakdown voltage. This silicon diode offers a 10µA leakage current and 175pF capacitance. Designed for surface mount applications with tin contact plating, it operates within a -55°C to 150°C temperature range.
Capacitance175pF
Voltage Rating5V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns CDSOD323-T05S technical specifications.
General
| Capacitance | 175pF |
| Clamping Voltage | 13.5V |
| Contact Plating | Tin |
| Depth | 1.45mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Leakage Current | 10uA |
| Length | 1.9mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500W |
| Max Surge Current | 42A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 42A |
| Peak Pulse Power | 500W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CDSOD323-T05S Datasheet
Download the complete datasheet for Bourns CDSOD323-T05S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

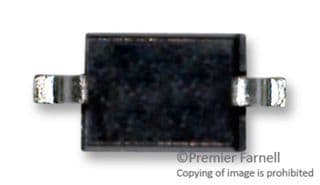

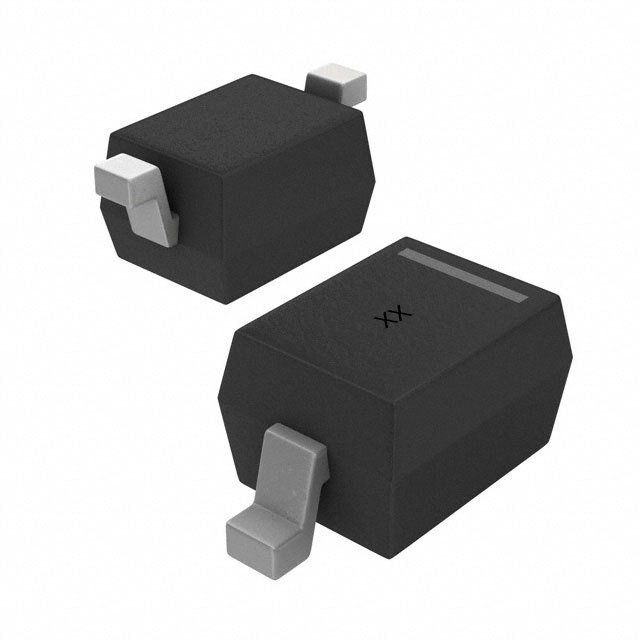

Product Images
