Bidirectional Transient Voltage Suppressor (TVS) diode for ESD protection, featuring a 12V reverse standoff voltage and 12V working voltage. This surface mount component offers a low capacitance of 1pF and a peak pulse current rating of 11A, with a maximum power dissipation of 250W. It operates across a wide temperature range from -55°C to 150°C and exhibits a clamping voltage of 28.6V. The diode is housed in a compact SOD-323 package, supplied on tape and reel.
Capacitance1pF
Voltage Rating12V
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns CDSOD323-T12LC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns CDSOD323-T12LC technical specifications.
General
| Capacitance | 1pF |
| Clamping Voltage | 28.6V |
| Depth | 1.45mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Leakage Current | 1uA |
| Length | 1.9mm |
| Max Breakdown Voltage | 13.3V |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250W |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 11A |
| Peak Pulse Power | 250W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CDSOD323-T12LC Datasheet
Download the complete datasheet for Bourns CDSOD323-T12LC to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

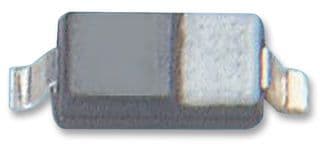

Product Images
