Unidirectional TVS Diode Array for ESD protection, featuring a 5V reverse standoff voltage and 6V reverse breakdown voltage. This surface mount component offers 500W peak pulse power dissipation and 30A peak pulse current handling. With a low capacitance of 3.5pF and a clamping voltage of 15V, it provides robust protection. Operating across a wide temperature range of -55°C to 150°C, this RoHS compliant device is supplied in a 6-pin SOT-23 package.
PackageSOT-23
Capacitance3.5pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CDSOT23-SRV05-4 technical specifications.
General
| Capacitance | 3.5pF |
| Package/Case | SOT-23 |
| Clamping Voltage | 15V |
| Contact Plating | Gold |
| Depth | 0.55mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.051inch |
| Leakage Current | 5uA |
| Length | 3.05mm |
| Max Breakdown Voltage | 6V |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500W |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 4 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 30A |
| Peak Pulse Power | 500W |
| Polarity | Unidirectional |
| Power Dissipation | 500W |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 0.069inch |
| Working Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CDSOT23-SRV05-4 Datasheet
Download the complete datasheet for Bourns CDSOT23-SRV05-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

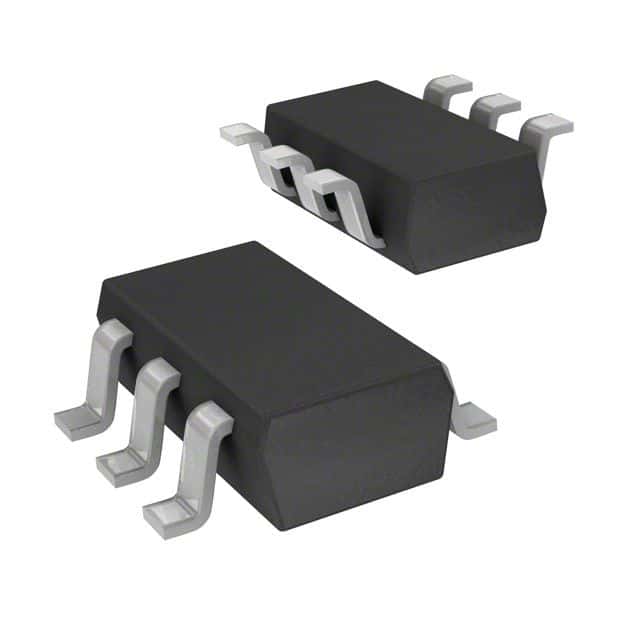

Product Images
