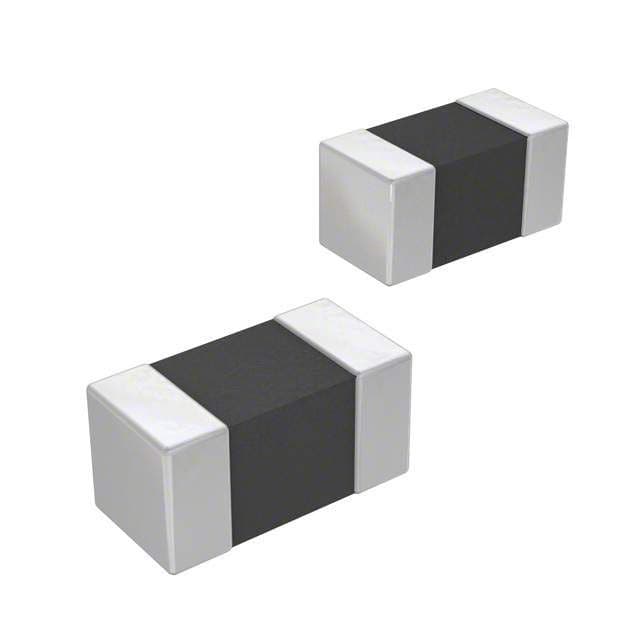

The Bourns CG0402MLA-14LG is a 18V varistor with an energy rating of 0.05J and an operating temperature range of -55°C to 125°C. It is designed for surface mount applications in the 0402 package. This varistor is compliant with RoHS regulations and is available in quantities of 10,000 per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns CG0402MLA-14LG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Energy | 0.05J |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 20A |
| Max Varistor Voltage | 20.7V |
| Min Varistor Voltage | 15.3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ChipGuard® |
| Varistor Voltage | 18V |
| RoHS | Compliant |
Download the complete datasheet for Bourns CG0402MLA-14LG to view detailed technical specifications.
