Surface mount Transient Voltage Suppressor (TVS) diode offering 12V working voltage and 25V clamping voltage. Features 0.5pF capacitance and 1ns response time for effective ESD protection. Designed for surface mount applications in a compact 0603 (1608 Metric) package with tin contact plating. Operating temperature range from -40°C to 85°C, with low leakage current of 50nA.
Package0603
Voltage12V
Capacitance0.5pF
Voltage Rating12V
Quick Jump:
Technical Specifications
Bourns CG0603MLC-12LE technical specifications.
General
| Capacitance | 0.5pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Clamping Voltage | 25V |
| Contact Plating | Tin |
| Current Rating | 5nA |
| Depth | 0.8mm |
| Leakage Current | 50nA |
| Length | 1.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Voltage | 12V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1ns |
| RoHS Compliant | Yes |
| Series | MLC |
| Termination | SMD/SMT |
| Voltage | 12V |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Width | 0.8mm |
| Working Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CG0603MLC-12LE Datasheet
Download the complete datasheet for Bourns CG0603MLC-12LE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

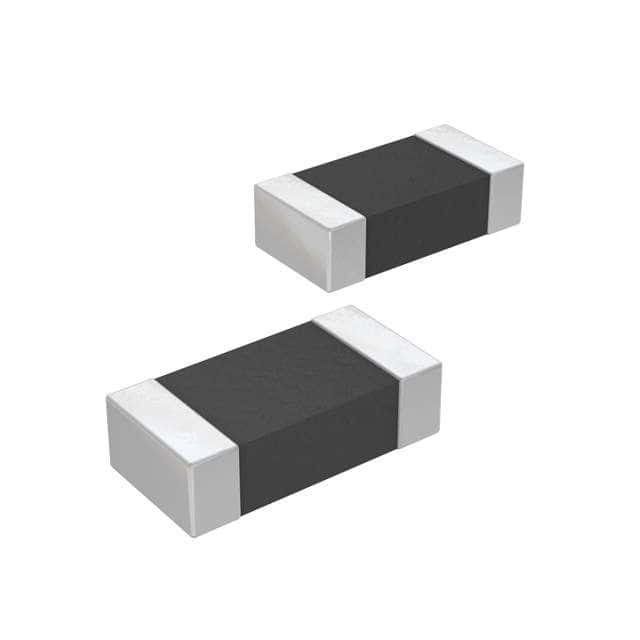

Product Images
