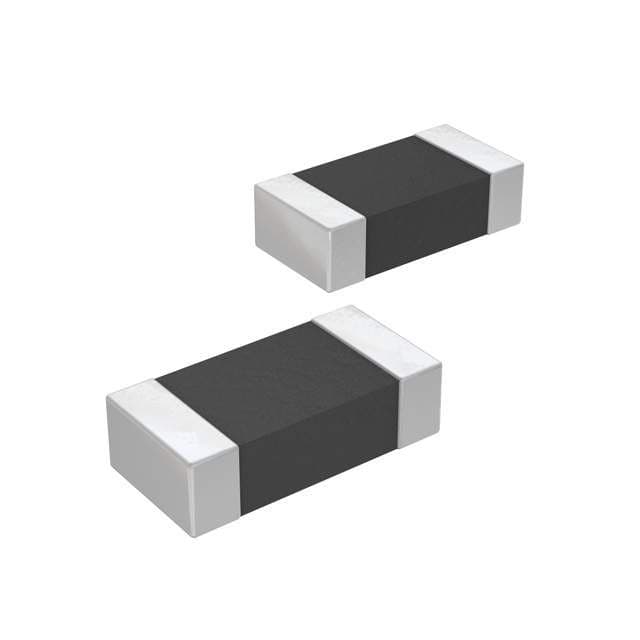

Surface mount varistor, 12V DC rated voltage, featuring a 0603 package size. Offers 1A clamping current and 140V clamping voltage. Includes ESD protection with a 5pF capacitance. Operates within a temperature range of -30°C to 85°C. RoHS compliant with tin contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns CG0603MLD-12E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 5pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0603 |
| Clamping Current | 1A |
| Clamping Voltage | 140V |
| Contact Plating | Tin |
| Current Rating | 1uA |
| Depth | 0.8mm |
| ESD Protection | Yes |
| Length | 1.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | MLD |
| Size Code | 603 |
| Termination | SMD/SMT |
| Thickness | 0.8mm |
| Varistor Voltage | 50V |
| Voltage | 12V |
| DC Rated Voltage | 12V |
| Width | 0.5mm |
| RoHS | Compliant |
