Bourns
CR0603-FX-6041ELF
Fixed Resistor, Ruthenium Oxide, 0.1W, 6040ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Fixed Resistor, Ruthenium Oxide, 0.1W, 6040ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Package0603
Resistance6.04kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CR0603-FX-6041ELF technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Tin |
| Features | Moisture Resistant |
| Height | 0.022inch |
| Length | 0.063inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 6.04kR |
| RoHS Compliant | Yes |
| Series | CR0603 |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CR0603-FX-6041ELF Datasheet
Download the complete datasheet for Bourns CR0603-FX-6041ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

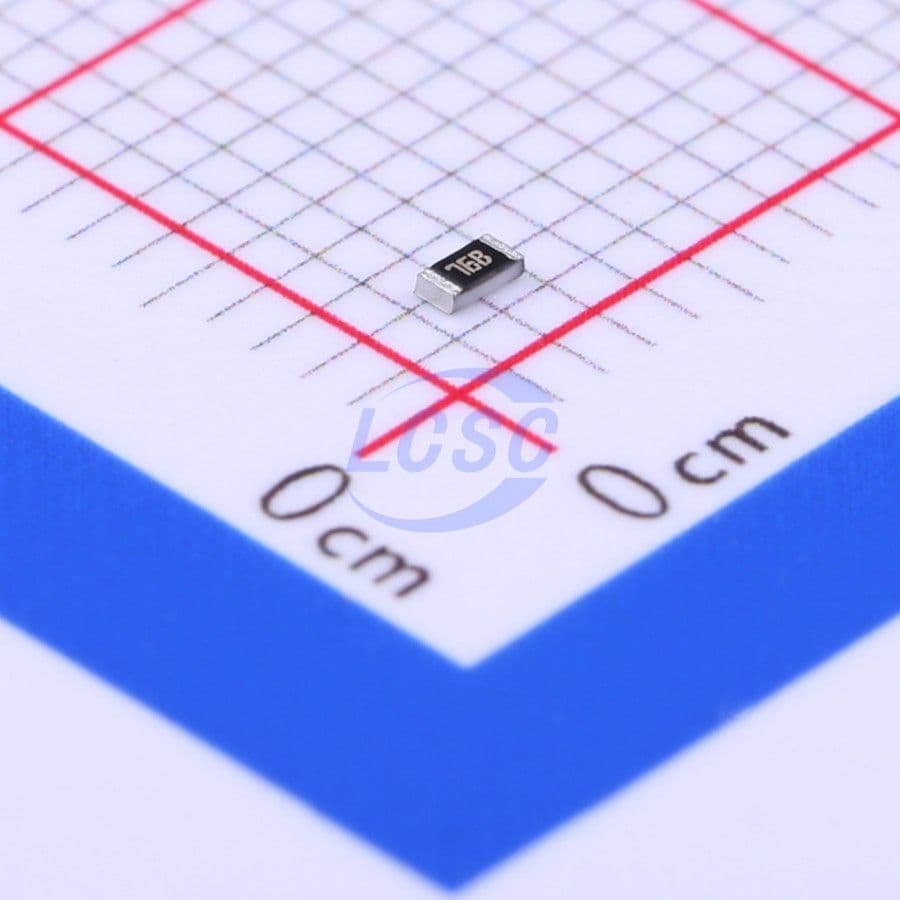

Product Images
