This chip resistor from Bourns features a moisture-resistant design and is available in a 0805 package with a surface-mount termination. The device has a maximum operating temperature of 155°C and a minimum operating temperature of -55°C. It is RoHS compliant and has a resistance of 383 ohms with a tolerance of 1%. The resistor is rated for a maximum power dissipation of 125 milliwatts and has a voltage rating of 150 volts.
Package0805
Resistance383R
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CR0805-FX-3830ELF technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin |
| Features | Moisture Resistant |
| Height | 0.024inch |
| Length | 0.079inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 383R |
| RoHS Compliant | Yes |
| Series | CR0805 |
| Termination | SMD/SMT |
| Thickness | 508um |
| Tolerance | 1% |
| Voltage Rating | 150V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CR0805-FX-3830ELF Datasheet
Download the complete datasheet for Bourns CR0805-FX-3830ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

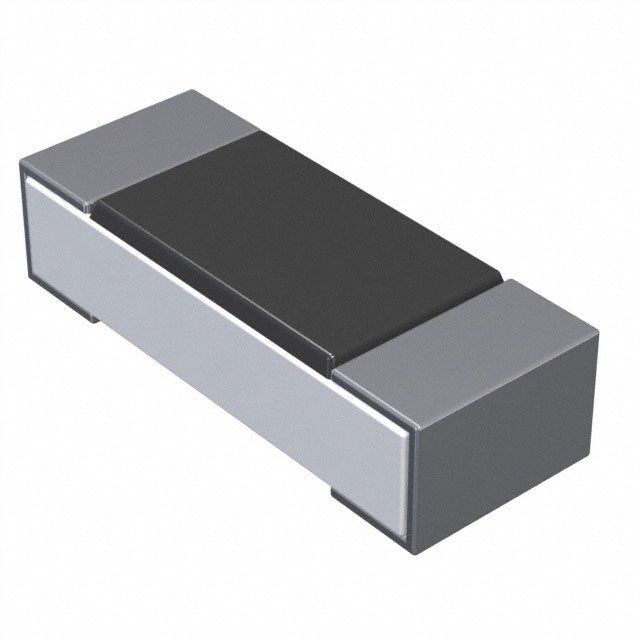

Product Images
