Surface mount thick film fixed resistor, 330 Ohm resistance with 5% tolerance. Features a 125mW power rating and 150V voltage rating. Operates from -55°C to 155°C in a 0805 (2012 metric) case code. Constructed with tin plating and moisture resistance, this component is RoHS compliant.
Package0805
Resistance330R
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CR0805-JW-331ELF technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Moisture Resistant |
| Height | 0.024inch |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 330R |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CR0805 |
| Termination | SMD/SMT |
| Thickness | 508um |
| Tolerance | 5% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CR0805-JW-331ELF Datasheet
Download the complete datasheet for Bourns CR0805-JW-331ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

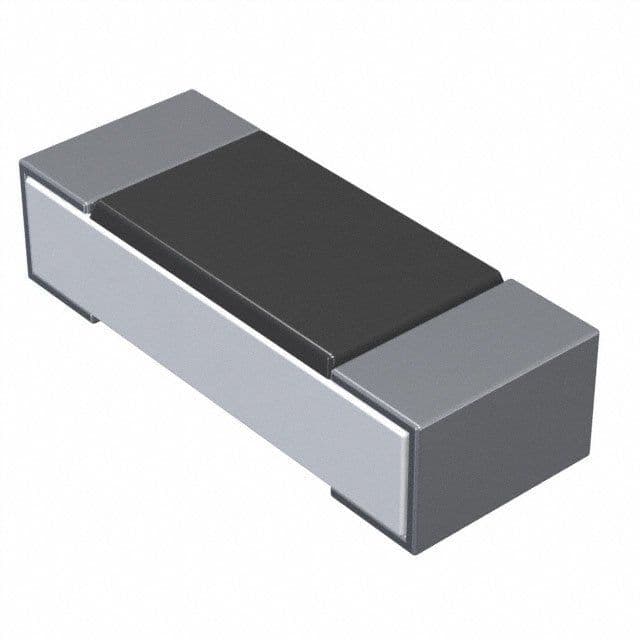

Product Images
