Surface mount thick film chip resistor offering 220 Ohms resistance with a 1% tolerance. Features a 1206 [3216 Metric] case code, 250mW power dissipation, and a 200V voltage rating. Designed for general purpose applications, this moisture-resistant component operates from -55°C to 155°C and is supplied on tape and reel.
Package1206
Resistance220R
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CR1206-FX-2200ELF technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin |
| Features | Moisture Resistant |
| Height | 0.03inch |
| Length | 3.2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 220R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CR1206 |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CR1206-FX-2200ELF Datasheet
Download the complete datasheet for Bourns CR1206-FX-2200ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

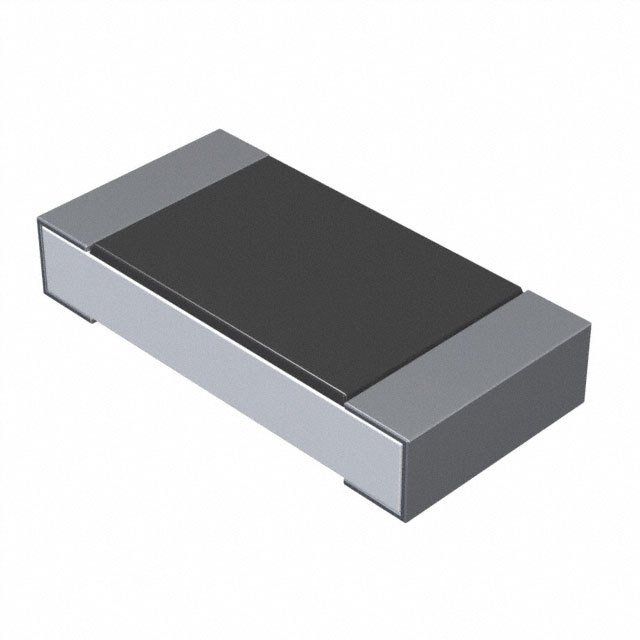

Product Images
