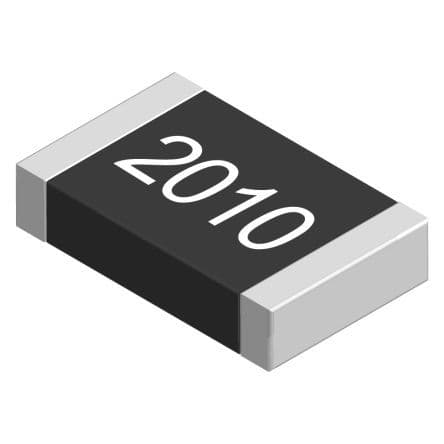

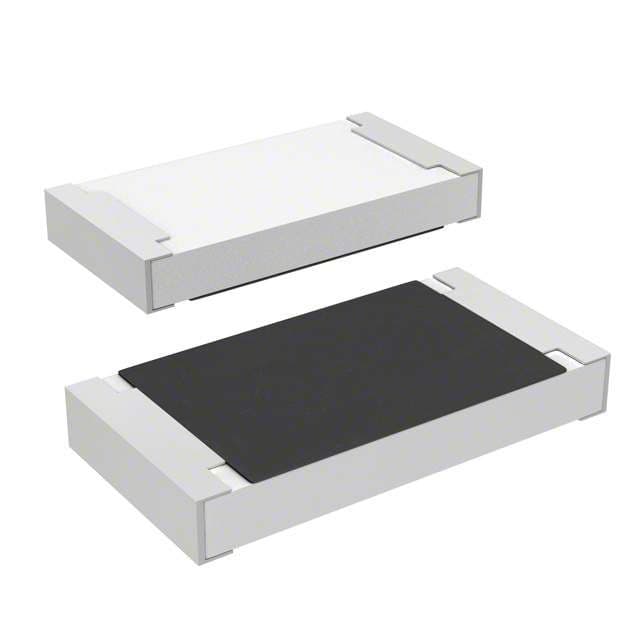

Surface mount thick film fixed resistor with 1W power dissipation and 0.1 ohm resistance. Features 1% resistance tolerance and 100ppm/°C temperature coefficient. Operates within a -55°C to 155°C temperature range. Packaged in a 2010 case code (5025 metric) on tape and reel. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns CRM2010-FX-R100ELF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 2010 |
| Case Code (Metric) | 5025 |
| Package/Case | 2010 |
| Height | 0.028inch |
| Length | 5mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 100mR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRM2010 |
| Tolerance | 1% |
| DC Rated Voltage | 954mV |
| Weight | 0.000173oz |
| Width | 2.5mm |
| RoHS | Compliant |
