Thick film chip resistor, 2512 case code (6432 metric), offering 100 Ohm resistance with a 5% tolerance. Features a 2W maximum power dissipation and a voltage rating of 300V. Operating temperature range spans from -55°C to 155°C. Surface mount termination with tin plating, packaged in tape and reel.
Package2512
Resistance100R
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CRM2512-JW-101ELF technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Contact Plating | Tin |
| Height | 0.031inch |
| Length | 0.248inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 100R |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRM2512 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 0.001429oz |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CRM2512-JW-101ELF Datasheet
Download the complete datasheet for Bourns CRM2512-JW-101ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

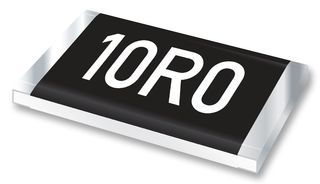

Product Images
