Surface mount fixed resistor featuring metal glaze/thick film technology. Offers 1kΩ resistance with a 5% tolerance and a 300V DC rating. Designed for high power applications with 2W dissipation, operating across a wide temperature range from -55°C to 155°C. Housed in a 2512 (6432 metric) case with tin plated terminations and a height of 0.031 inches.
Package2512
Resistance1kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CRM2512-JW-102ELF technical specifications.
General
Case Code (Imperial)
2512
Case Code (Metric)
6432
Package/Case
2512
Contact Plating
Tin
Height
0.031inch
Length
0.248inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Mount
Surface Mount
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Resistance
1kR
RoHS Compliant
Yes
Series
CRM2512
Termination
SMD/SMT
Tolerance
5%
DC Rated Voltage
300V
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Bourns CRM2512-JW-102ELF Datasheet
Download the complete datasheet for Bourns CRM2512-JW-102ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

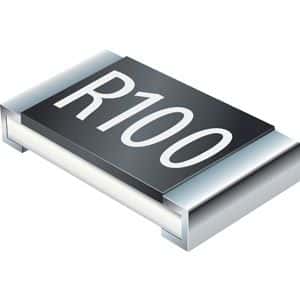

Product Images
