Technical Specifications
Bourns CRT1206-BY-4023ELF technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3016 |
| Package/Case | 1206 |
| Height | 0.55mm |
| Length | 3mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Resistance | 402kR |
| RoHS Compliant | Yes |
| Series | CRT |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
| Voltage Rating | 200V |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CRT1206-BY-4023ELF Datasheet
Download the complete datasheet for Bourns CRT1206-BY-4023ELF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

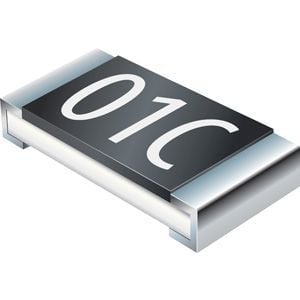

Product Images
