Surface mount fixed inductor featuring 3.9nH inductance with a 5% tolerance, designed for RF applications. This ceramic core component operates within a -55°C to 125°C temperature range and offers a current rating of 840mA with a DC resistance of 66mR. The 0402 case size component has a Q factor of 20 at 250MHz and a self-resonant frequency of 5.8GHz. Packaged in tape and reel, this unshielded inductor is RoHS compliant.
Package0402
Current Rating840mA
MountingSurface Mount
Inductance3.9nH
Quick Jump:
Technical Specifications
Bourns CW100505-3N9J technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Ceramic |
| Current Rating | 840mA |
| DC Resistance (DCR) | 66mR |
| Depth | 0.65mm |
| Height | 0.5mm |
| Height - Seated (Max) | 0.024inch |
| Inductance | 3.9nH |
| Inductance Tolerance | 5% |
| Length | 0.039inch |
| Max DC Current | 840mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 5.8GHz |
| Series | CW100505 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 250MHz |
| Tolerance | 5% |
| Width | 0.55mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CW100505-3N9J Datasheet
Download the complete datasheet for Bourns CW100505-3N9J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

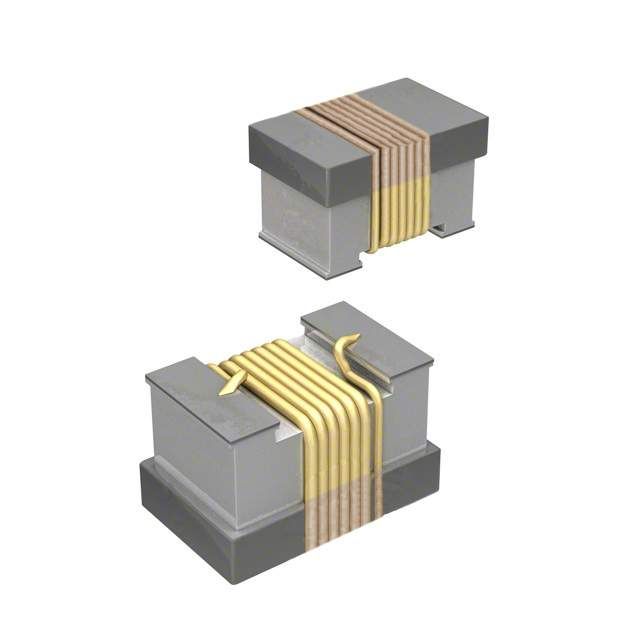

Product Images
