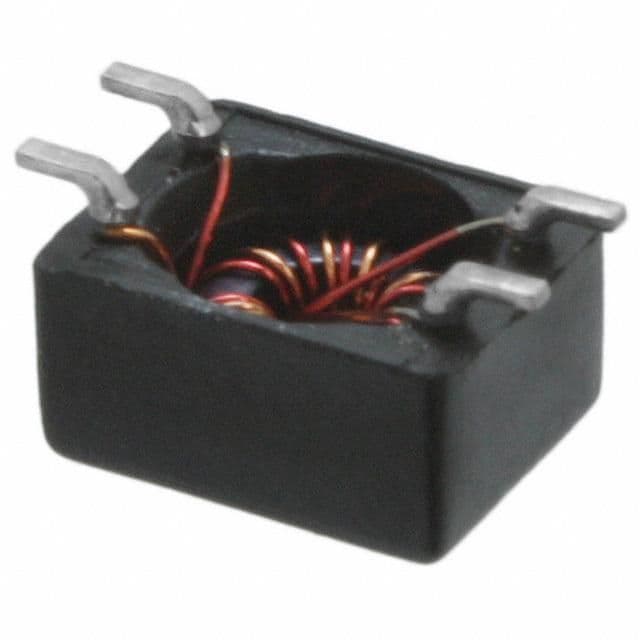

The DR331-474BE is a ferrite EMI filter with a core material of ferrite, inductance of 470uH, and a maximum current rating of 500mA. It has a DC rated voltage of 80V and operates within a temperature range of -40°C to 135°C. The filter is designed for surface mount applications and is packaged in tape and reel quantities of 1500. It is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns DR331-474BE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Core Material | Ferrite |
| Current Rating | 500mA |
| Depth | 9.3mm |
| Height | 4.7mm |
| Inductance | 470uH |
| Lead Pitch | 3.7mm |
| Length | 9mm |
| Max Current Rating | 500mA |
| Max DC Current | 500mA |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DR331 |
| Termination | SMD/SMT |
| Tolerance | 25% |
| Voltage Rating (AC) | 42V |
| DC Rated Voltage | 80V |
| Width | 5.4mm |
| RoHS | Compliant |
