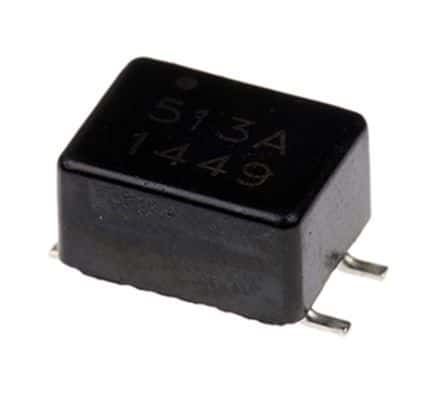

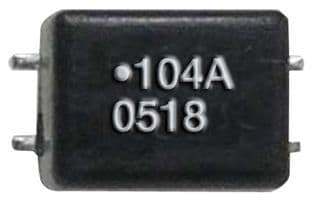

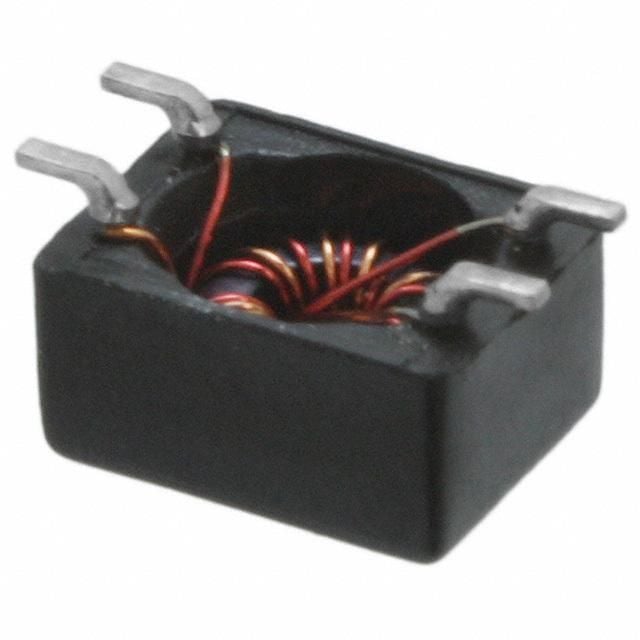

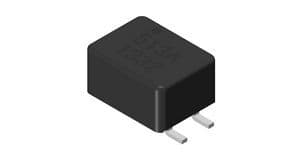

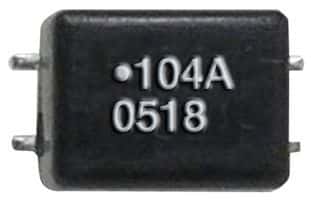

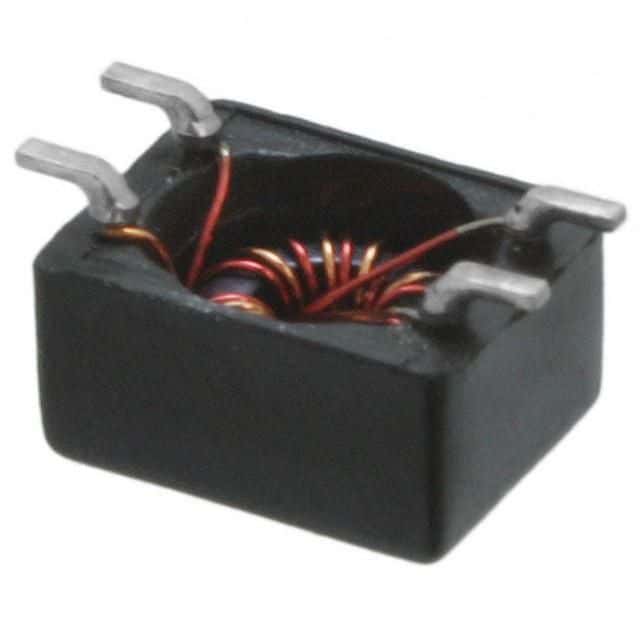

Dual Common Mode Choke, 4.7mH inductance with 25% tolerance, designed for power and signal lines. Features a 200mA current rating and 700mΩ DC resistance. Operates from -40°C to 135°C, with 42V AC and 80V DC voltage ratings. Packaged in SMD/SMT tape and reel for surface mounting, with ferrite core material.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns DR331-475BE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns DR331-475BE technical specifications.
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Current Rating | 200mA |
| DC Current | 200mA |
| DC Resistance (DCR) | 700mR |
| Depth | 9.3mm |
| Height | 4.7mm |
| Inductance | 4.7mH |
| Inductance Tolerance | 25% |
| Lead Pitch | 3.7mm |
| Length | 5.7mm |
| Max Current Rating | 200mA |
| Max DC Current | 200mA |
| Max Operating Temperature | 135°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DR331 |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 25% |
| Voltage Rating (AC) | 42V |
| DC Rated Voltage | 80V |
| Width | 5.4mm |
| RoHS | Compliant |
