Surface mount PTC resettable fuse with 350mA hold current and 750mA trip current. Features a 6V DC rating, 40A maximum interrupt current, and 500mW power dissipation. Operating temperature range is -40°C to 85°C. This 0603 (1608 metric) package component offers 1.4 Ohm resistance and is supplied on tape and reel.
Package0603
Resistance1.4R
Voltage Rating6V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-FSMF035X-2 technical specifications.
General
| Approvals | UL |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Current Rating | 40A |
| Height | 0.65mm |
| Hold Current | 350mA |
| Length | 1.85mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount, PCB |
| Operating Supply Voltage | 9V |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1.4R |
| RoHS Compliant | Yes |
| Series | Multifuse®, MF-FSMF |
| Terminal Material | Gold |
| Termination | SMD/SMT |
| Time to Trip | 100ms |
| Trip Current | 750mA |
| Voltage Rating | 6V |
| DC Rated Voltage | 6V |
| Width | 1.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-FSMF035X-2 Datasheet
Download the complete datasheet for Bourns MF-FSMF035X-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

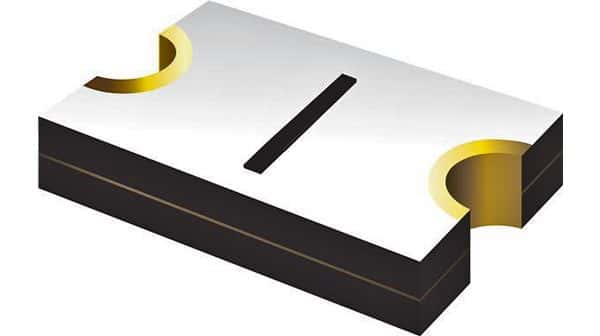

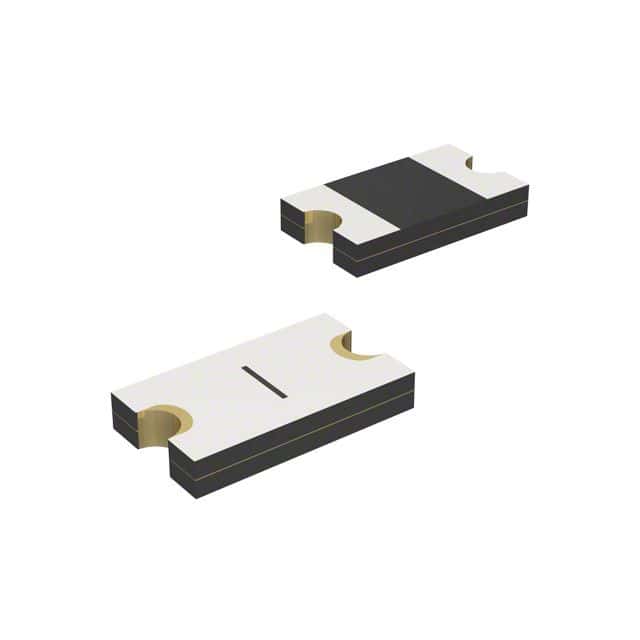

Product Images
