Surface mount resettable fuse with axial termination, designed for overcurrent protection. Features a 2.6A hold current and trips at 5.8A, with a maximum operating voltage of 15V DC. This component offers a low resistance of 42mR and a 100A maximum current rating, operating within a temperature range of -40°C to 85°C. Approvals include UL, CSA, and TUV, with RoHS compliance.
PackageAxial
Resistance42mR
Voltage Rating15V
Current Rating100A
Quick Jump:
Technical Specifications
Bourns MF-LR260 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | Axial |
| Current Rating | 100A |
| Height | 1mm |
| Hold Current | 2.6A |
| Length | 23.1mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 1.3W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 42mR |
| RoHS Compliant | Yes |
| Series | MF-LR |
| Termination | Axial |
| Time to Trip | 5s |
| Trip Current | 5.8A |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Width | 5.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-LR260 Datasheet
Download the complete datasheet for Bourns MF-LR260 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

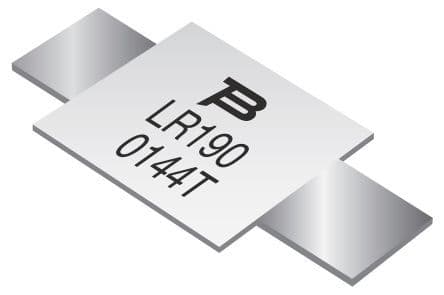

Product Images
