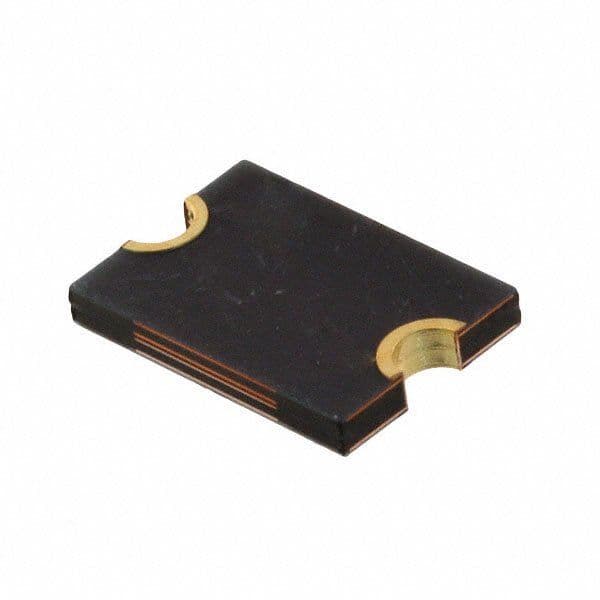

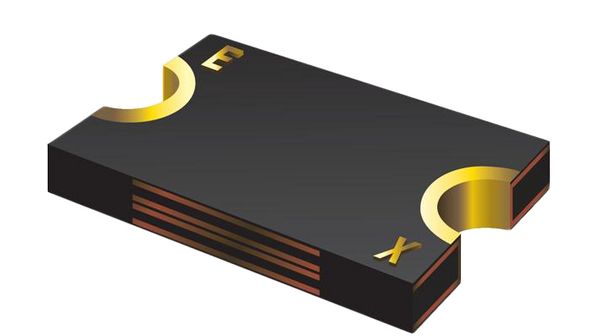

Surface mount PTC resettable fuse designed for overcurrent protection. Features a 6V DC rating, 3A hold current, and 5A trip current with a 20-second trip time. This component offers a 48mΩ resistance and a maximum current rating of 40A, operating within a -40°C to 85°C temperature range. Housed in a 2920 (7351 metric) case code with gold terminals, it is supplied in tape and reel packaging. AEC-Q200 qualified and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-LSMF300X-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-LSMF300X-2 technical specifications.
| Approvals | UL |
| Case Code (Imperial) | 2920 |
| Case Code (Metric) | 7351 |
| Package/Case | 3121 |
| Height | 0.85mm |
| Hold Current | 3A |
| Length | 7.98mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.5W |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 48mR |
| RoHS Compliant | Yes |
| Series | Multifuse®, MF-LSMF |
| Terminal Material | Gold |
| Termination | SMD/SMT |
| Time to Trip | 20s |
| Trip Current | 5A |
| Voltage Rating | 6V |
| DC Rated Voltage | 6V |
| Width | 5.44mm |
| RoHS | Compliant |
