Surface mount PTC resettable fuse with 1.1A hold current and 2.2A trip current. Features a 16V DC rating, 100A maximum interrupt current, and 800mW power dissipation. This component operates within a -40°C to 85°C temperature range and has a resistance of 210mΩ. Designed for PCB mounting with solder pad termination in an 1812 case code, it is RoHS compliant and AEC-Q200 qualified.
Package1812
Resistance210mR
Voltage Rating16V
Current Rating100A
Quick Jump:
Technical Specifications
Bourns MF-MSMF110/16-2 technical specifications.
General
Approvals
UL, CSA, TUV
Case Code (Imperial)
1812
Case Code (Metric)
4532
Package/Case
1812
Current Rating
100A
Height
0.85mm
Hold Current
1.1A
Lead Free
Lead Free
Length
4.73mm
Max Current Rating
100A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Mount
Surface Mount, PCB
Operating Supply Voltage
16V
Package Quantity
2000
Packaging
Tape and Reel
Power Dissipation
800mW
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Resistance
210mR
RoHS Compliant
Yes
Series
MF-MSMF
Terminal Material
Gold
Termination
SMD/SMT
Time to Trip
300ms
Trip Current
2.2A
Voltage Rating
16V
DC Rated Voltage
16V
Width
3.41mm
Compliance
RoHS
Compliant
Datasheet
Bourns MF-MSMF110/16-2 Datasheet
Download the complete datasheet for Bourns MF-MSMF110/16-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

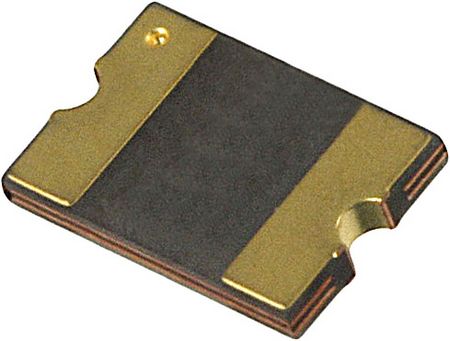

Product Images
