Surface mount resettable fuse with 2.5A hold current and 5A trip current. Features a 16V DC rating, 100A maximum interrupt current, and 1.2W power dissipation. Designed for automotive applications with AEC-Q200 qualification, operating from -40°C to +85°C. Housed in an 1812 (4532 metric) SMD package with solder pad termination, supplied on tape and reel. Meets UL, CSA, and TUV approvals, and is RoHS compliant.
Package1812
Resistance100mR
Voltage Rating16V
Current Rating100A
Quick Jump:
Technical Specifications
Bourns MF-MSMF250/16X-2 technical specifications.
General
| Aging | 1000 hr @ +85 °C (Passive) |
| Approvals | UL, CSA, TUV |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Current Rating | 100A |
| Height | 1.6mm |
| Hold Current | 2.5A |
| Length | 4.73mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.2W |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 100mR |
| RoHS Compliant | Yes |
| Series | MF-MSMF |
| Termination | SMD/SMT |
| Time to Trip | 5s |
| Trip Current | 5A |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 3.41mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-MSMF250/16X-2 Datasheet
Download the complete datasheet for Bourns MF-MSMF250/16X-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

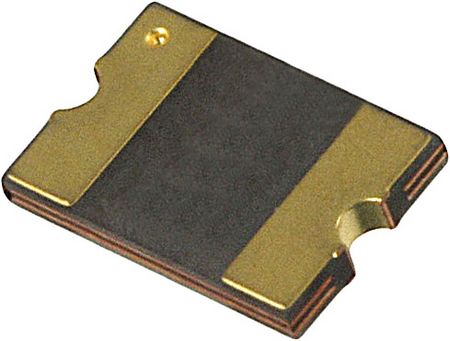

Product Images
