Surface mount PTC resettable fuse, 1206 chip package, designed for 24V DC operation. Features a 200mA hold current and 460mA trip current, with a maximum current rating of 10A. Offers a low resistance of 2.6 Ohms and a maximum power dissipation of 600mW. Operating temperature range from -40°C to 85°C, with UL, CSA, and TUV approvals. Packaged in tape and reel for automated assembly.
Package1206
Resistance2.6R
Voltage Rating24V
Current Rating10A
Quick Jump:
Technical Specifications
Bourns MF-NSMF020-2 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Current Rating | 10A |
| Height | 0.85mm |
| Hold Current | 200mA |
| Lead Free | Lead Free |
| Length | 3.4mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600mW |
| Mount | Surface Mount, PCB |
| Operating Supply Voltage | 24V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 600mW |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 2.6R |
| RoHS Compliant | Yes |
| Series | MF-NSMF |
| Tab Width | 0.25mm |
| Terminal Material | Gold |
| Termination | SMD/SMT |
| Time to Trip | 600ms |
| Trip Current | 460mA |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-NSMF020-2 Datasheet
Download the complete datasheet for Bourns MF-NSMF020-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

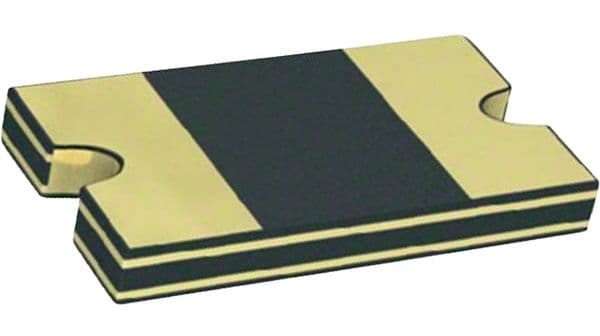

Product Images
