Surface mount PTC resettable fuse with 100mA hold current and 300mA trip current. Features a 15V DC rating, 40A maximum current, and 500mW power dissipation. Operating temperature range from -40°C to 85°C, with a 1.5-second trip time. Packaged in an 0805 (2012 metric) SMD case, supplied on tape and reel. RoHS compliant with gold-plated terminals.
Package0805
Resistance7.5R
Voltage Rating15V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-PSMF010X-2 technical specifications.
General
Approvals
UL
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Current Rating
40A
Height
0.85mm
Hold Current
100mA
Length
2.3mm
Max Current Rating
40A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Mount
Surface Mount, PCB
Operating Supply Voltage
15V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
7.5R
RoHS Compliant
Yes
Series
MF-PSMF
Terminal Material
Gold
Termination
SMD/SMT
Time to Trip
1.5s
Trip Current
300mA
Voltage Rating
15V
DC Rated Voltage
15V
Width
1.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns MF-PSMF010X-2 Datasheet
Download the complete datasheet for Bourns MF-PSMF010X-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

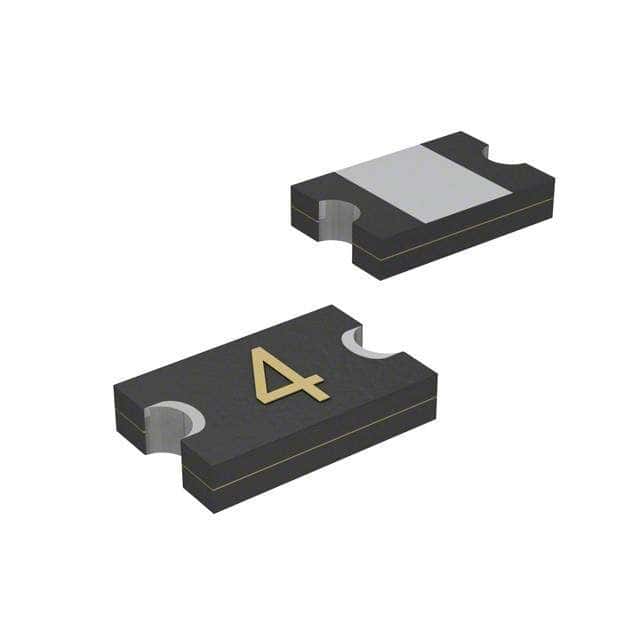

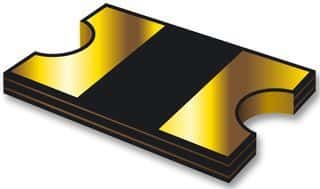

Product Images
