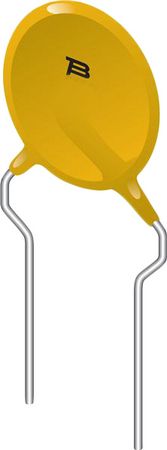

Radial PTC resettable fuse with 60V DC rating, 50mA hold current, and 100mA trip current. Features 40A maximum interrupt current, 220mW power dissipation, and 5-second time to trip. Operates across a -40°C to 85°C temperature range. RoHS compliant with CSA approval.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-R005-0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-R005-0 technical specifications.
| Approvals | CSA |
| Body Height | 8.3mm |
| Body Length | 8mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 40A |
| Height | 3.1mm |
| Hold Current | 50mA |
| Lead Diameter | 0.4mm |
| Lead Free | Lead Free |
| Lead Length | 7.6mm |
| Lead Pitch | 5.1mm |
| Length | 15.9mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 220mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 11.1R |
| RoHS Compliant | Yes |
| Series | Multifuse®, MF-R |
| Termination | Radial |
| Time to Trip | 5s |
| Trip Current | 100mA |
| Voltage Rating | 60V |
| DC Rated Voltage | 60V |
| Width | 8mm |
| Wire/Cable Diameter | 0.405mm |
| RoHS | Compliant |
