Radial PTC resettable fuse for overcurrent protection. Features a 60V DC rating, 100mA hold current, and 200mA trip current. Offers a maximum current rating of 40A and 4.5 Ohm resistance. Operates within a temperature range of -40°C to 85°C, with a time to trip of 4 seconds. Supplied in tape and reel packaging, with UL, CSA, and TUV approvals.
PackageRadial
Resistance4.5R
Voltage Rating60V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-R010-2 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | Radial |
| Current Rating | 40A |
| Hold Current | 100mA |
| Lead Diameter | 0.51mm |
| Lead Pitch | 5.1mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Supply Voltage | 60V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 380mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 4.5R |
| RoHS Compliant | Yes |
| Series | MF-R |
| Termination | Radial |
| Time to Trip | 4s |
| Trip Current | 200mA |
| Voltage Rating | 60V |
| DC Rated Voltage | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-R010-2 Datasheet
Download the complete datasheet for Bourns MF-R010-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

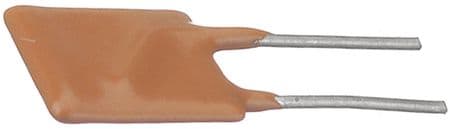

Product Images
