Technical Specifications
Bourns MF-R020-2-99 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | Radial |
| Current Rating | 40A |
| Hold Current | 200mA |
| Lead Diameter | 0.51mm |
| Lead Pitch | 5.1mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 400mW |
| Resistance | 2.84R |
| RoHS Compliant | Yes |
| Series | MF-R |
| Termination | Radial |
| Time to Trip | 2.2s |
| Trip Current | 400mA |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-R020-2-99 Datasheet
Download the complete datasheet for Bourns MF-R020-2-99 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

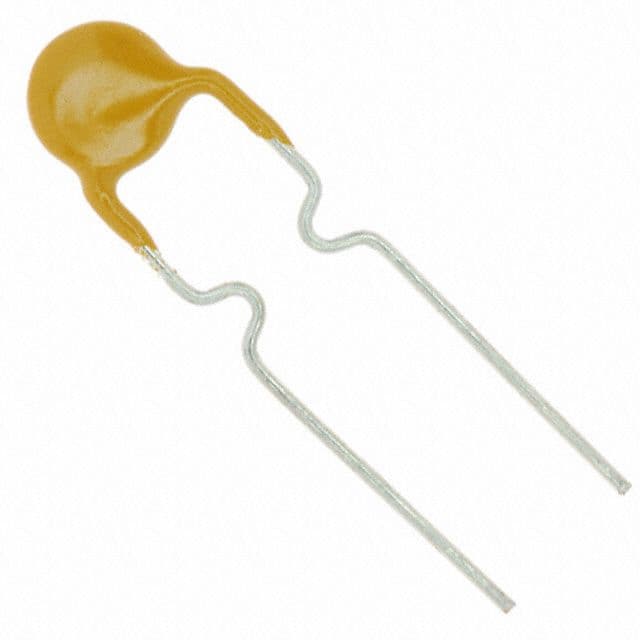

Product Images
