Technical Specifications
Bourns MF-R040-2 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | Radial |
| Current Rating | 40A |
| Hold Current | 400mA |
| Lead Diameter | 0.51mm |
| Lead Pitch | 5.1mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Supply Voltage | 60V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 550mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 860mR |
| RoHS Compliant | Yes |
| Series | MF-R |
| Termination | Radial |
| Time to Trip | 3.8s |
| Trip Current | 800mA |
| DC Rated Voltage | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-R040-2 Datasheet
Download the complete datasheet for Bourns MF-R040-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

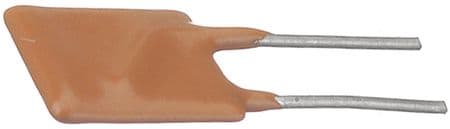

Product Images
