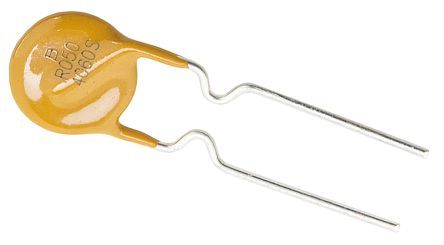

Radial PTC resettable fuse with 500mA hold current and 1A trip current, rated for 60V DC. Features 40A maximum interrupt current, 750mW power dissipation, and 4-second time to trip. Constructed with polymer and epoxy body material, it offers a 7.9mm body diameter and 0.51mm lead diameter. Operating temperature range from -40°C to 85°C, with UL, CSA, and TUV approvals. RoHS compliant and lead-free, supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-R050 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-R050 technical specifications.
| Approvals | UL, CSA, TUV |
| Body Diameter | 7.9mm |
| Body Height | 13.7mm |
| Body Length | 7.9mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 40A |
| Diameter | 7.9mm |
| Flammability Rating | UL94 V-0 |
| Height | 13.7mm |
| Hold Current | 500mA |
| Lead Diameter | 0.51mm |
| Lead Free | Lead Free |
| Lead Length | 7.6mm |
| Lead Pitch | 5.1mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 750mW |
| Mount | Through Hole, PCB |
| Operating Supply Voltage | 60V |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 750mW |
| Reach SVHC Compliant | No |
| Resistance | 770mR |
| RoHS Compliant | Yes |
| Series | MF-R |
| Termination | Radial |
| Time to Trip | 4s |
| Trip Current | 1A |
| Voltage Rating | 60V |
| DC Rated Voltage | 60V |
| Width | 7.9mm |
| Wire/Cable Diameter | 0.51mm |
| RoHS | Compliant |
