Radial leaded, through-hole mount resettable fuse with a 500mA hold current and 1A trip current. Features a 60V DC rated voltage, 40A maximum current rating, and 770mΩ resistance. Operating temperature range is -40°C to 85°C. Approvals include UL, CSA, and TUV.
PackageRadial
Resistance770mR
Voltage Rating60V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-R050-2 technical specifications.
General
Approvals
UL, CSA, TUV
Package/Case
Radial
Current Rating
40A
Hold Current
500mA
Lead Diameter
0.51mm
Lead Pitch
5.1mm
Max Current Rating
40A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Supply Voltage
60V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
750mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
770mR
RoHS Compliant
Yes
Series
MF-R
Termination
Radial
Time to Trip
4s
Trip Current
1A
Voltage Rating
60V
DC Rated Voltage
60V
Compliance
RoHS
Compliant
Datasheet
Bourns MF-R050-2 Datasheet
Download the complete datasheet for Bourns MF-R050-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

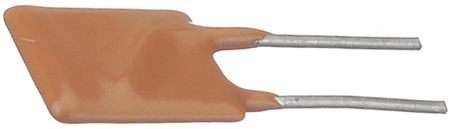

Product Images
