PackageRadial
Resistance900mR
Current Rating550mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications

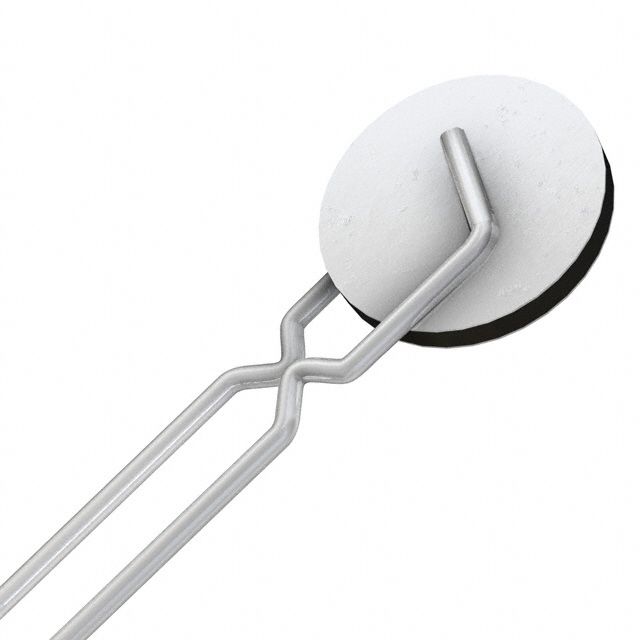

Bourns MF-R055/90U-2 technical specifications.
General
Approvals
UL, CSA, TUV
Body Material
Polymer, Epoxy
Package/Case
Radial
Current Rating
550mA
Hold Current
550mA
Lead Diameter
0.81mm
Lead Pitch
5.1mm
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Operating Supply Voltage
60V
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
2W
Radiation Hardening
No
Resistance
900mR
RoHS Compliant
Yes
Series
Multifuse®, MF-R/90
Termination
Radial
Time to Trip
28s
Trip Current
1.1A
DC Rated Voltage
90V
Compliance
RoHS
Compliant
Datasheet
Bourns MF-R055/90U-2 Datasheet
Download the complete datasheet for Bourns MF-R055/90U-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
