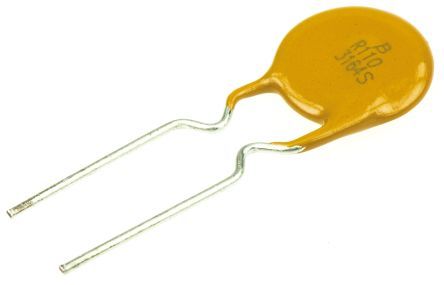

Radial PTC resettable fuse with 1.1A hold current and 2.2A trip current. Features a 30V DC rating, 40A maximum current, and 700mW power dissipation. Constructed with polymer and epoxy body material, it offers a 6.6-second time to trip and 180mΩ resistance. UL, CSA, and TUV approved, this lead-free component is RoHS compliant and suitable for through-hole PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-R110 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-R110 technical specifications.
| Approvals | UL, CSA, TUV |
| Body Diameter | 6.6mm |
| Body Height | 14mm |
| Body Length | 8.9mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 40A |
| Diameter | 8.9mm |
| Flammability Rating | UL94 V-0 |
| Height | 14mm |
| Hold Current | 1.1A |
| Lead Diameter | 0.51mm |
| Lead Free | Lead Free |
| Lead Length | 7.6mm |
| Lead Pitch | 5.1mm |
| Length | 14mm |
| Manufacturer Series | MF-R |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 700mW |
| Mount | Through Hole, PCB |
| Operating Supply Voltage | 30V |
| Package Quantity | 500 |
| Package Shape | Disk |
| Packaging | Bulk |
| Power Dissipation | 700mW |
| Reach SVHC Compliant | No |
| Resistance | 180mR |
| RoHS Compliant | Yes |
| Series | MF-R |
| Terminal Finish | Copper |
| Terminal Placement | Radial |
| Termination | Radial |
| Thermistor Application | TEMPERATURE SENSING |
| Time to Trip | 6.6s |
| Trip Current | 2.2A |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Width | 8.9mm |
| Wire/Cable Diameter | 0.51mm |
| RoHS | Compliant |
