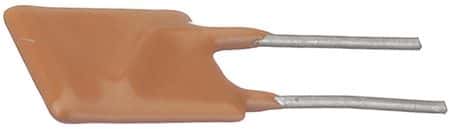

Radial resettable fuse for through-hole mounting, featuring a 1.35A hold current and 2.7A trip current. This component offers a 30V DC rated voltage and a maximum operating temperature of 85°C, with a low resistance of 115mR. Approvals include UL, CSA, and TUV, with lead-free and RoHS compliance.
PackageRadial
Resistance115mR
Voltage Rating30V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-R135-2 technical specifications.
General
Approvals
UL, CSA, TUV
Package/Case
Radial
Current Rating
40A
Hold Current
1.35A
Lead Diameter
0.51mm
Lead Free
Lead Free
Lead Pitch
5.1mm
Max Current Rating
40A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Supply Voltage
30V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
800mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
115mR
RoHS Compliant
Yes
Series
MF-R
Termination
Radial
Time to Trip
7.3s
Trip Current
2.7A
Voltage Rating
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Bourns MF-R135-2 Datasheet
Download the complete datasheet for Bourns MF-R135-2 to view detailed technical specifications.
