Radial-leaded PTC resettable fuse for through-hole PCB mounting. Features a 30V DC rating, 1.6A hold current, and 3.2A trip current. Offers a maximum operating temperature of 85°C and a maximum current rating of 40A. Constructed with polymer and epoxy body material, it boasts UL, CSA, and TUV approvals and is RoHS compliant.
PackageRadial
Resistance105mR
Voltage Rating30V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-R160 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Body Height | 16.8mm |
| Body Length | 10.2mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 40A |
| Diameter | 10.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 16.8mm |
| Hold Current | 1.6A |
| Lead Diameter | 0.51mm |
| Lead Free | Lead Free |
| Lead Length | 7.6mm |
| Lead Pitch | 5.1mm |
| Manufacturer Series | MF-R |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 900mW |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Package Shape | Disk |
| Packaging | Bulk |
| Power Dissipation | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 105mR |
| RoHS Compliant | Yes |
| Series | Multifuse®, MF-R |
| Terminal Finish | Copper |
| Terminal Placement | Radial |
| Termination | Radial |
| Thermistor Application | TEMPERATURE SENSING |
| Time to Trip | 8s |
| Trip Current | 3.2A |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Wire/Cable Diameter | 0.51mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-R160 Datasheet
Download the complete datasheet for Bourns MF-R160 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

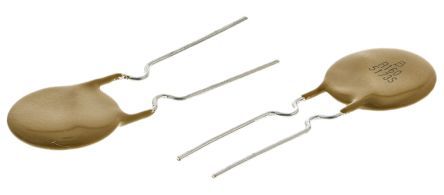

Product Images
