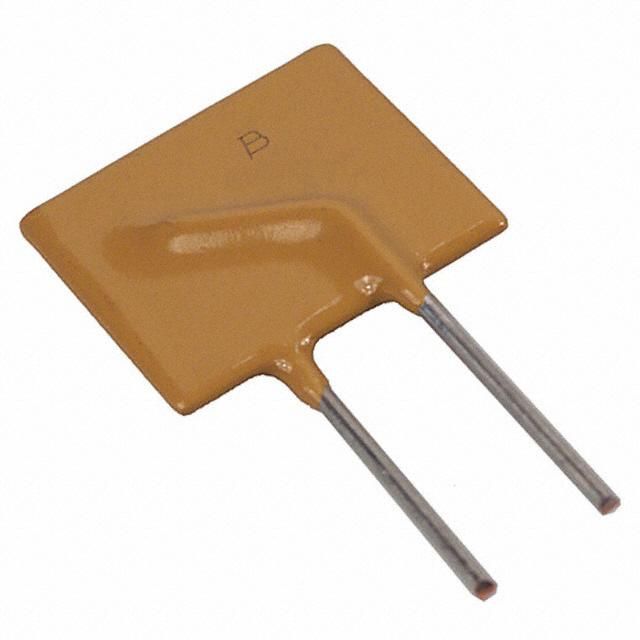

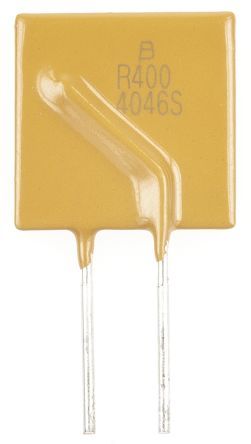

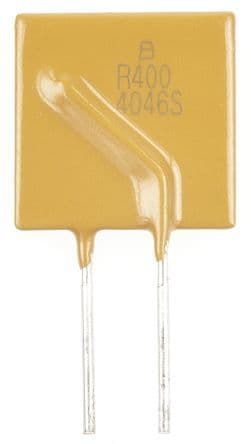

Radial leaded, through-hole mount resettable fuse designed for circuit protection. Features a 4A hold current and 8A trip current, with a maximum operating voltage of 30V. Offers a 40A maximum current rating and 2.5W power dissipation. Constructed with a polymer and epoxy body, it operates within a temperature range of -40°C to 85°C and is UL, CSA, and TUV approved. Compliant with RoHS standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-R400 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-R400 technical specifications.
| Approvals | UL, CSA, TUV |
| Body Height | 24.8mm |
| Body Length | 14.4mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 40A |
| Flammability Rating | UL94 V-0 |
| Height | 24.8mm |
| Hold Current | 4A |
| Lead Diameter | 0.81mm |
| Lead Free | Lead Free |
| Lead Length | 7.6mm |
| Lead Pitch | 5.1mm |
| Length | 14.4mm |
| Manufacturer Series | MF-R |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.5W |
| Mount | Through Hole, PCB |
| Operating Supply Voltage | 30V |
| Package Quantity | 500 |
| Package Shape | Rectangular |
| Packaging | Bulk |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 30mR |
| RoHS Compliant | Yes |
| Series | MF-R |
| Terminal Finish | Copper |
| Terminal Placement | Radial |
| Termination | Radial |
| Thermistor Application | TEMPERATURE SENSING |
| Thickness | 3mm |
| Time to Trip | 12.7s |
| Trip Current | 8A |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Width | 14mm |
| Wire/Cable Diameter | 0.81mm |
| RoHS | Compliant |
