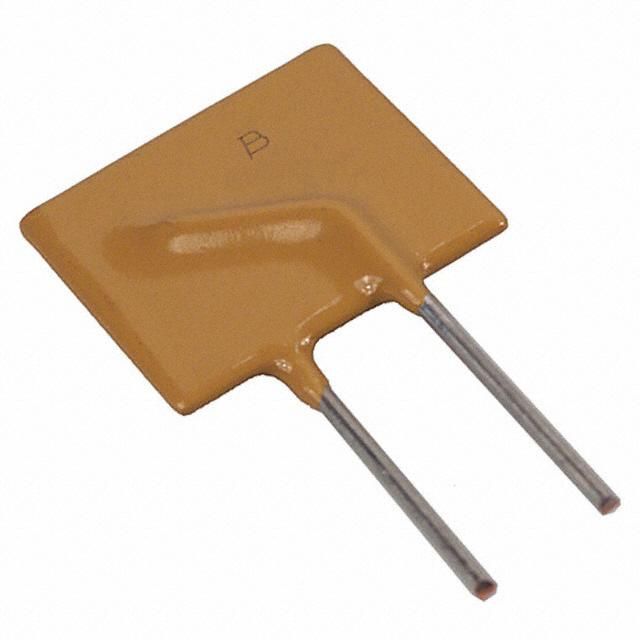

Radial leaded, through-hole mount PTC resettable fuse with a 5A hold current and 10A trip current. Features a 30V DC/AC operating voltage, 40A maximum current rating, and 3W power dissipation. Constructed with a 30mΩ resistance and radial terminations, this component operates between -40°C and 85°C. UL94 V-0 flammability rating and UL, CSA, TUV approvals ensure safety and reliability.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-R500-0-99 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-R500-0-99 technical specifications.
| Approvals | UL, CSA, TUV |
| Package/Case | Radial |
| Current Rating | 40A |
| Flammability Rating | UL94 V-0 |
| Hold Current | 5A |
| Lead Diameter | 0.81mm |
| Lead Length | 7.6mm |
| Lead Pitch | 10.2mm |
| Length | 24.9mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3W |
| Mount | Through Hole |
| Operating Supply Voltage | 30V |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 3W |
| Reach SVHC Compliant | No |
| Resistance | 30mR |
| RoHS Compliant | Yes |
| Series | MF-R |
| Termination | Radial |
| Time to Trip | 14.5s |
| Trip Current | 10A |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 30V |
| Width | 16.5mm |
| RoHS | Compliant |
