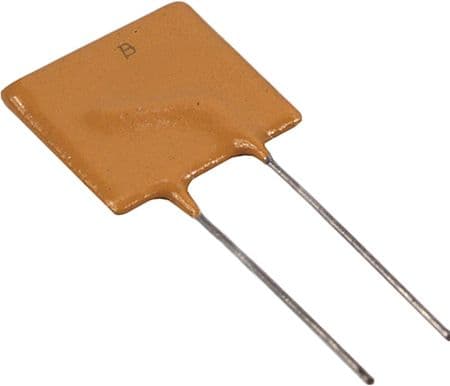

Radial leaded, through-hole mount PTC resettable fuse designed for circuit protection. Features a 30V DC rating and a 6A hold current, with a trip current of 12A and a maximum current rating of 40A. Constructed with a polymer and epoxy body, it offers a resistance of 20mR and a power dissipation of 3.5W. Operating temperature range from -40°C to 85°C, with UL, CSA, and TUV approvals. Compliant with RoHS standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-R600 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-R600 technical specifications.
| Approvals | UL, CSA, TUV |
| Body Height | 31.9mm |
| Body Length | 19.3mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 40A |
| Flammability Rating | UL94 V-0 |
| Height | 31.9mm |
| Hold Current | 6A |
| Lead Diameter | 0.81mm |
| Lead Free | Lead Free |
| Lead Length | 7.6mm |
| Lead Pitch | 10.2mm |
| Length | 19.3mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 3.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 20mR |
| RoHS Compliant | Yes |
| Series | Multifuse®, MF-R |
| Termination | Radial |
| Thickness | 3mm |
| Time to Trip | 16s |
| Trip Current | 12A |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Width | 19.3mm |
| Wire/Cable Diameter | 0.81mm |
| RoHS | Compliant |
