Radial leaded, through-hole mounted resettable fuse with a 16V operating voltage and 7.5A hold current. Features a 13.1A trip current, 22mΩ resistance, and 4.5W power dissipation. Designed for a wide operating temperature range of -40°C to 125°C, with a 5.1mm lead pitch and 0.81mm wire diameter. AEC-Q200 qualified, this component offers circuit protection with a 100A maximum current rating.
PackageRadial
Resistance22mR
Voltage Rating16V
Current Rating100A
Quick Jump:
Technical Specifications
Bourns MF-RHT750-0 technical specifications.
General
| Body Height | 23.5mm |
| Body Length | 14mm |
| Package/Case | Radial |
| Current Rating | 100A |
| Height | 3mm |
| Hold Current | 7.5A |
| Lead Pitch | 5.1mm |
| Length | 31.1mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Supply Voltage | 16V |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 4.5W |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 22mR |
| Series | MF-RHT |
| Termination | Radial |
| Time to Trip | 7s |
| Trip Current | 13.1A |
| Voltage Rating | 16V |
| Width | 14mm |
| Wire/Cable Diameter | 0.81mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-RHT750-0 Datasheet
Download the complete datasheet for Bourns MF-RHT750-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

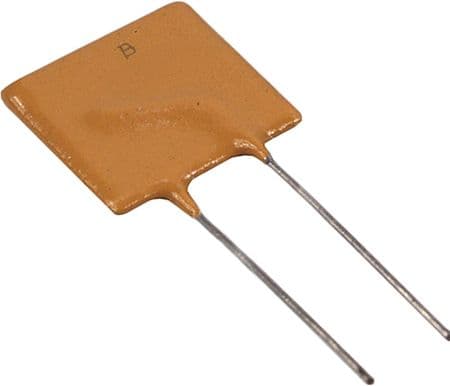

Product Images
