PackageRadial
Resistance140mR
Current Rating40A
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns MF-RX160-2 technical specifications.
General
Approvals
UL, CSA, TUV
Package/Case
Radial
Current Rating
40A
Hold Current
1.6A
Lead Diameter
0.81mm
Lead Pitch
5.1mm
Max Current Rating
40A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Supply Voltage
60V
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
1.9W
Radiation Hardening
No
Resistance
140mR
RoHS Compliant
Yes
Series
Multifuse®, MF-RX
Termination
Radial
Time to Trip
11.4s
Trip Current
3.2A
DC Rated Voltage
60V
Compliance
RoHS
Compliant
Datasheet
Bourns MF-RX160-2 Datasheet
Download the complete datasheet for Bourns MF-RX160-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

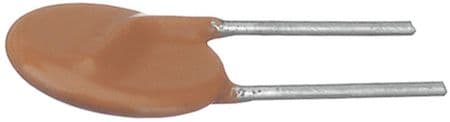

Product Images
