PackageRadial
Resistance60mR
Current Rating40A
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns MF-RX300-2 technical specifications.
General
Approvals
UL, CSA, TUV
Package/Case
Radial
Current Rating
40A
Hold Current
3A
Lead Diameter
0.81mm
Lead Pitch
10.2mm
Max Current Rating
40A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Supply Voltage
60V
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
2.8W
Resistance
60mR
RoHS Compliant
Yes
Series
MF-RX
Termination
Radial
Time to Trip
19.8s
Trip Current
6A
DC Rated Voltage
60V
Compliance
RoHS
Compliant
Datasheet
Bourns MF-RX300-2 Datasheet
Download the complete datasheet for Bourns MF-RX300-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

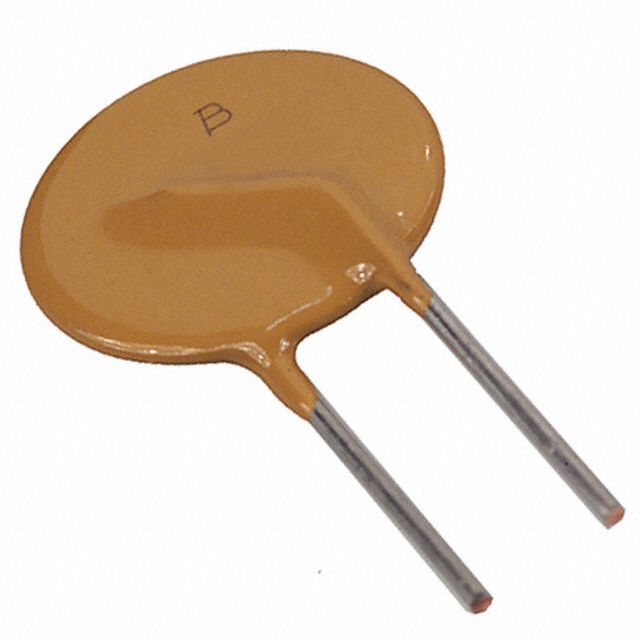

Product Images
