Surface mount resettable fuse with axial termination, designed for overcurrent protection. Features a hold current of 1.2A, trip current of 2.7A, and a maximum operating voltage of 15V DC. Offers a low resistance of 160mR and a maximum power dissipation of 1.2W. Operates across a wide temperature range from -40°C to 85°C, with UL, CSA, and TUV approvals. Packaged in bulk for surface mount applications.
PackageAxial
Resistance160mR
Voltage Rating15V
Current Rating100A
Quick Jump:
Technical Specifications
Bourns MF-S120 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | Axial |
| Current Rating | 100A |
| Height | 1mm |
| Hold Current | 1.2A |
| Length | 22.1mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 15V |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 1.2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 160mR |
| RoHS Compliant | Yes |
| Series | MF-S |
| Termination | Axial |
| Time to Trip | 5s |
| Trip Current | 2.7A |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Width | 5.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-S120 Datasheet
Download the complete datasheet for Bourns MF-S120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

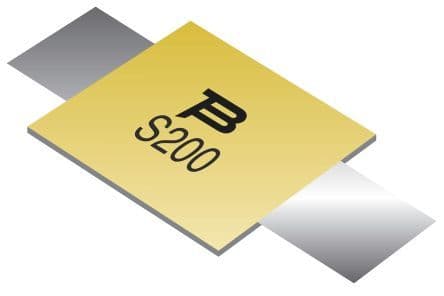

Product Images
