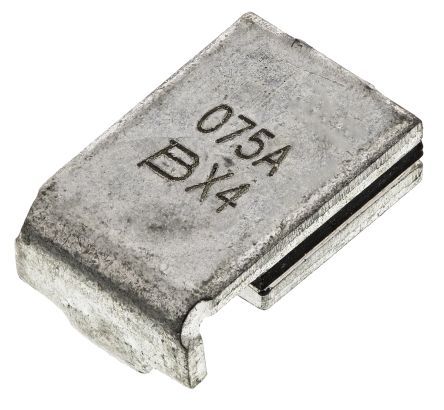

Surface mount PTC resettable fuse with a 60V DC rating and 0.75A hold current. Features a 1.5A trip current, 10A maximum current rating, and 1.7W power dissipation. Operates within a -40°C to 85°C temperature range and has a time to trip of 300ms. This component is RoHS compliant, AEC-Q200 qualified, and supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-SM075/60-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-SM075/60-2 technical specifications.
| Approvals | CSA |
| Package/Case | SMD/SMT |
| Height | 3.18mm |
| Hold Current | 750mA |
| Length | 7.98mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 60V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.7W |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 1R |
| RoHS Compliant | Yes |
| Series | MF-SM |
| Terminal Material | Brass |
| Termination | SMD/SMT |
| Time to Trip | 300ms |
| Trip Current | 1.5A |
| Voltage Rating | 60V |
| DC Rated Voltage | 60V |
| Width | 5.44mm |
| RoHS | Compliant |
