Surface mount PTC resettable fuse with a 1.25A hold current and 2.5A trip current. Features a 15V DC rated voltage and 100A maximum current rating. Operates within a temperature range of -40°C to 85°C, with 1.7W power dissipation. This component is RoHS compliant and supplied in tape and reel packaging.
PackageSMD/SMT
Resistance250mR
Voltage Rating15V
Current Rating100A
Quick Jump:
Technical Specifications
Bourns MF-SM125-2 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | SMD/SMT |
| Current Rating | 100A |
| Height | 3mm |
| Hold Current | 1.25A |
| Lead Free | Contains Lead |
| Lead Length | 0.43mm |
| Length | 7.98mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.7W |
| Mount | Surface Mount, PCB |
| Operating Supply Voltage | 15V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.7W |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 250mR |
| RoHS Compliant | Yes |
| Series | MF-SM |
| Tab Width | 0.71mm |
| Terminal Material | Brass |
| Termination | SMD/SMT |
| Time to Trip | 2s |
| Trip Current | 2.5A |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Width | 5.44mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MF-SM125-2 Datasheet
Download the complete datasheet for Bourns MF-SM125-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

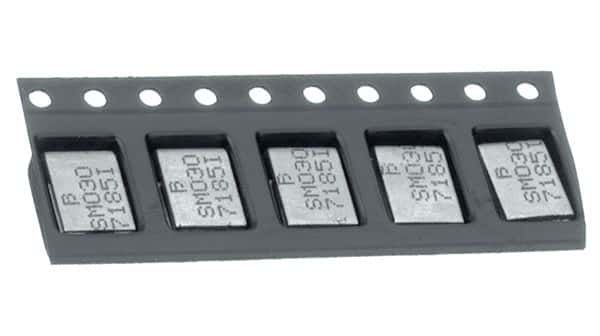

Product Images
