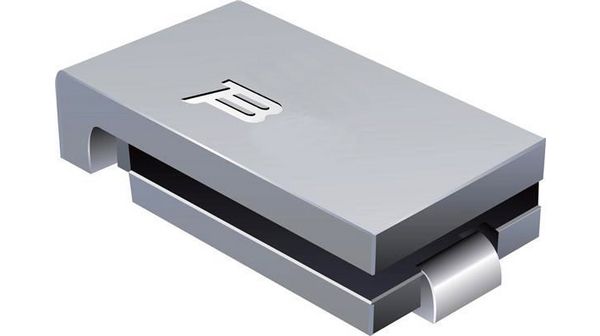

Surface mount PTC resettable fuse with a 1.6A hold current and 3.2A trip current. Features a 16V DC rated voltage, 150mΩ resistance, and 100A maximum current rating. Operates within a -40°C to 125°C temperature range and offers 2.1W power dissipation. Packaged in tape and reel for surface mount applications, this component is RoHS compliant and AEC-Q200 rated.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns MF-SMHT160-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns MF-SMHT160-2 technical specifications.
| Package/Case | SMD/SMT |
| Current Rating | 100A |
| Height | 3mm |
| Hold Current | 1.6A |
| Length | 9.5mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 16V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.1W |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 150mR |
| RoHS Compliant | Yes |
| Series | MF-SMHT |
| Terminal Material | Brass |
| Termination | SMD/SMT |
| Time to Trip | 10s |
| Trip Current | 3.2A |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 6.71mm |
| RoHS | Compliant |
