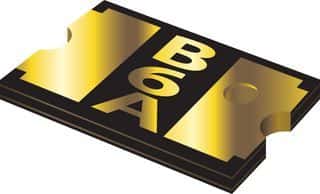

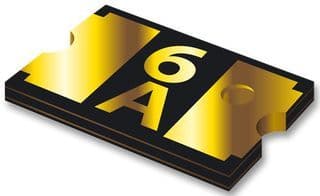

Surface mount resettable fuse, 1210 chip package, offering 750mA hold current and 1.5A trip current. Features a 6V DC rated voltage, 40A maximum current rating, and 450mR resistance. Operates across a -40°C to 85°C temperature range with 600mW power dissipation. Compliant with RoHS and AEC-Q200 standards, with UL, CSA, and TUV approvals. Packaged in tape and reel for efficient assembly.
Package1210
Resistance450mR
Voltage Rating6V
Current Rating40A
Quick Jump:
Technical Specifications
Bourns MF-USMF075-2 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Current Rating | 40A |
| Height | 0.85mm |
| Hold Current | 750mA |
| Lead Free | Lead Free |
| Length | 3.43mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 600mW |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 450mR |
| RoHS Compliant | Yes |
| Series | MF-USMF |
| Terminal Material | Gold |
| Termination | SMD/SMT |
| Time to Trip | 100ms |
| Trip Current | 1.5A |
| Voltage Rating | 6V |
| DC Rated Voltage | 6V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
