Surface mount ferrite chip for data line EMI/RFI filtering. Features 120 Ohm impedance at 100MHz, a 2A current rating, and 100mR DC resistance. Housed in a compact 0603 (1608 metric) case, this component operates across a wide temperature range of -55°C to 125°C. It is RoHS compliant and packaged on tape and reel.
Package0603
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns MH1608-121Y technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Ferrite
Current Rating
2A
DC Resistance (DCR)
100mR
Depth
1mm
Height
0.039inch
Impedance
120R
Length
0.063inch
Max Current Rating
2A
Max DC Current
2A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Lines
1
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
2A
RoHS Compliant
Yes
Series
MH
Series Resistance
100mR
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Bourns MH1608-121Y Datasheet
Download the complete datasheet for Bourns MH1608-121Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

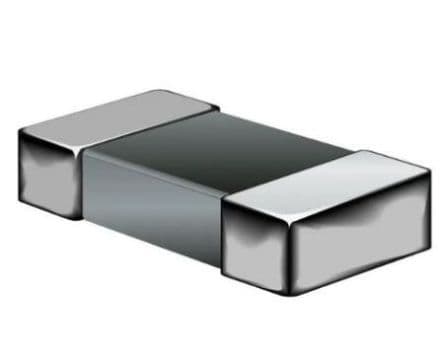

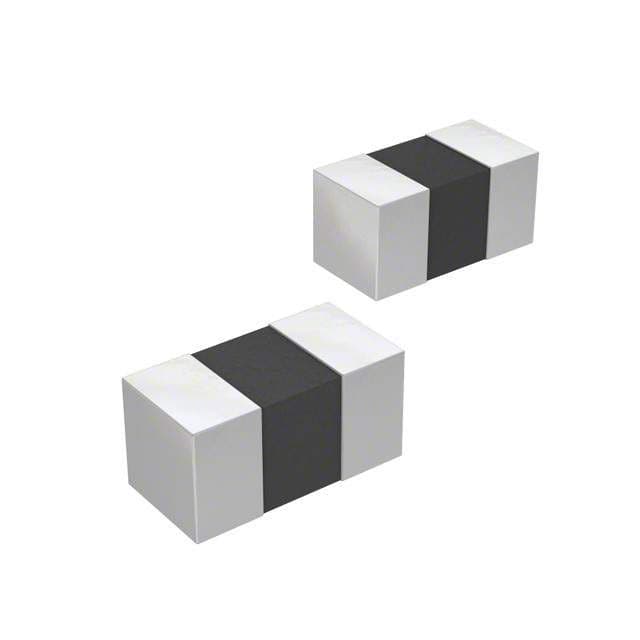

Product Images
