Surface mount ferrite chip for data line EMI/RFI filtering. Features a 3A maximum DC current rating and 4A current rating with 30mR DC resistance. Operates across a -55°C to 125°C temperature range, offering 30R impedance at 100MHz. Housed in a 1206 (3216 metric) case code, this component is halogen-free and RoHS compliant.
Package0805
Current Rating4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns MH2029-300Y technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 4A |
| DC Resistance (DCR) | 30mR |
| Depth | 1.4mm |
| Height | 0.043inch |
| Impedance | 30R |
| Length | 0.079inch |
| Max Current Rating | 3A |
| Max DC Current | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MH |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MH2029-300Y Datasheet
Download the complete datasheet for Bourns MH2029-300Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

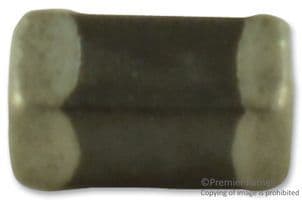

Product Images
