Technical Specifications
Bourns MOV-07D431KTR technical specifications.
General
| Capacitance | 115pF |
| Package/Case | Metal |
| Clamping Voltage | 710V |
| Diameter | 7mm |
| Energy | 28J |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 1.2kA |
| Max Varistor Voltage | 473V |
| Min Varistor Voltage | 387V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1500 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Termination | Radial |
| Tolerance | 10% |
| Varistor Voltage | 430V |
| DC Rated Voltage | 473V |
| Weight | 0.01411oz |
| Width | 6.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MOV-07D431KTR Datasheet
Download the complete datasheet for Bourns MOV-07D431KTR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

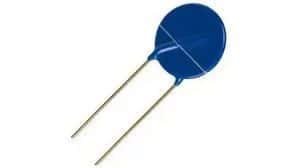

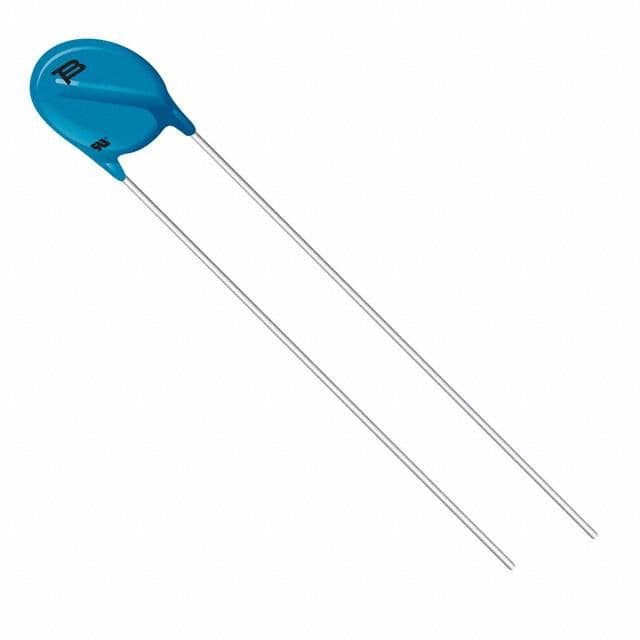

Product Images
